Mechanical Specifications

Description

This section presents the mechanical specifications of all packages.

Note

All dimensions are in millimeters.

Packages

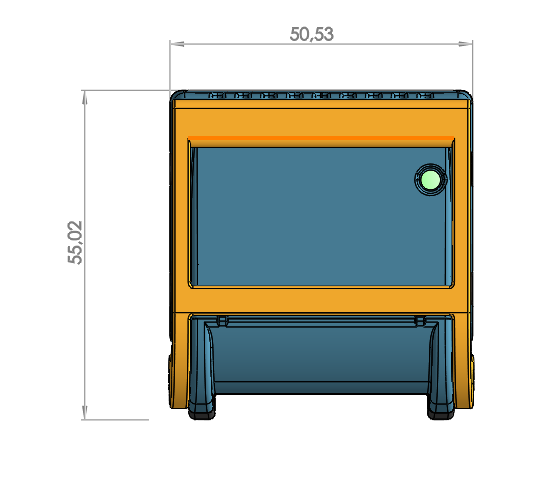

BOI12

This package is used for OI-Discrete, OI-Mixed, and OIAnalogLS modules.

Tip

STEP file download:

• BOI12 OI-Discrete - OI-Mixed - OI-AnalogLS.STEP

BOI13

This package is used for OI-Stepper, OI-DC, OI-RelayLP, OI-RelayHP, and OI-CoreLite modules.

Tip

STEP file download:

• BOI13 OI-Stepper - DC - RelayLP.STEP

• BOI13 OI-RelayHP.STEP

• BOI13 OI-CoreLite.STEP

BOI23

This package is used for OI-Core module.

Tip

STEP file download:

• BOI23 OI-Core no 4G.STEP

Rail

This section presents the mechanical specifications of the DIN rail used for mounting the modules.

Tip

STEP file download:

• Rail_9U.STEP
