OI-RelayLP
Description
The OI-RelayLP (LP indicating low power) module is a static-relay module designed to handle mains AC voltage (230VAC) with a maximum current rating of up to 1A. Its versatile configuration and compatibility make it suitable for various applications requiring static relay-based switching.
Pinout

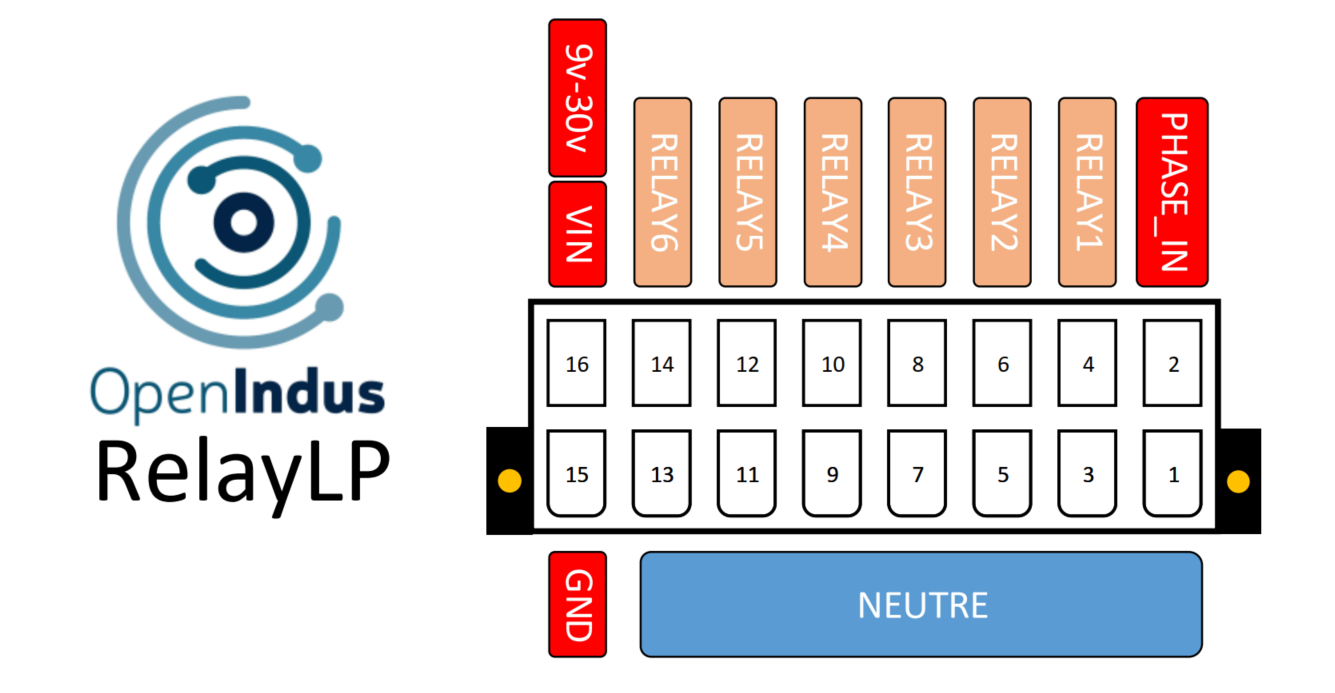

The pinout of the module is as follow :
Functions
9..30V DC |
|
6 |
|
CPU |
ESP32-S3 (8MB) |
Programming interface |
USB micro B |
Consumption (all outputs disabled) |
< 1W |
Temperature range |
-20 °C… +70°C |
Package |
BOI13 (75.97x53.81x27mm) |
